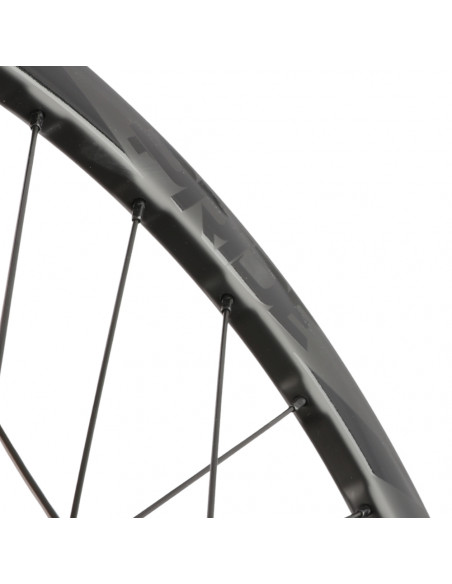

Wheels 20" (451) Pride Wave Matt Black - Fusion 10/10mm Black

PRIDE WAVE / MATRIX WHEELS

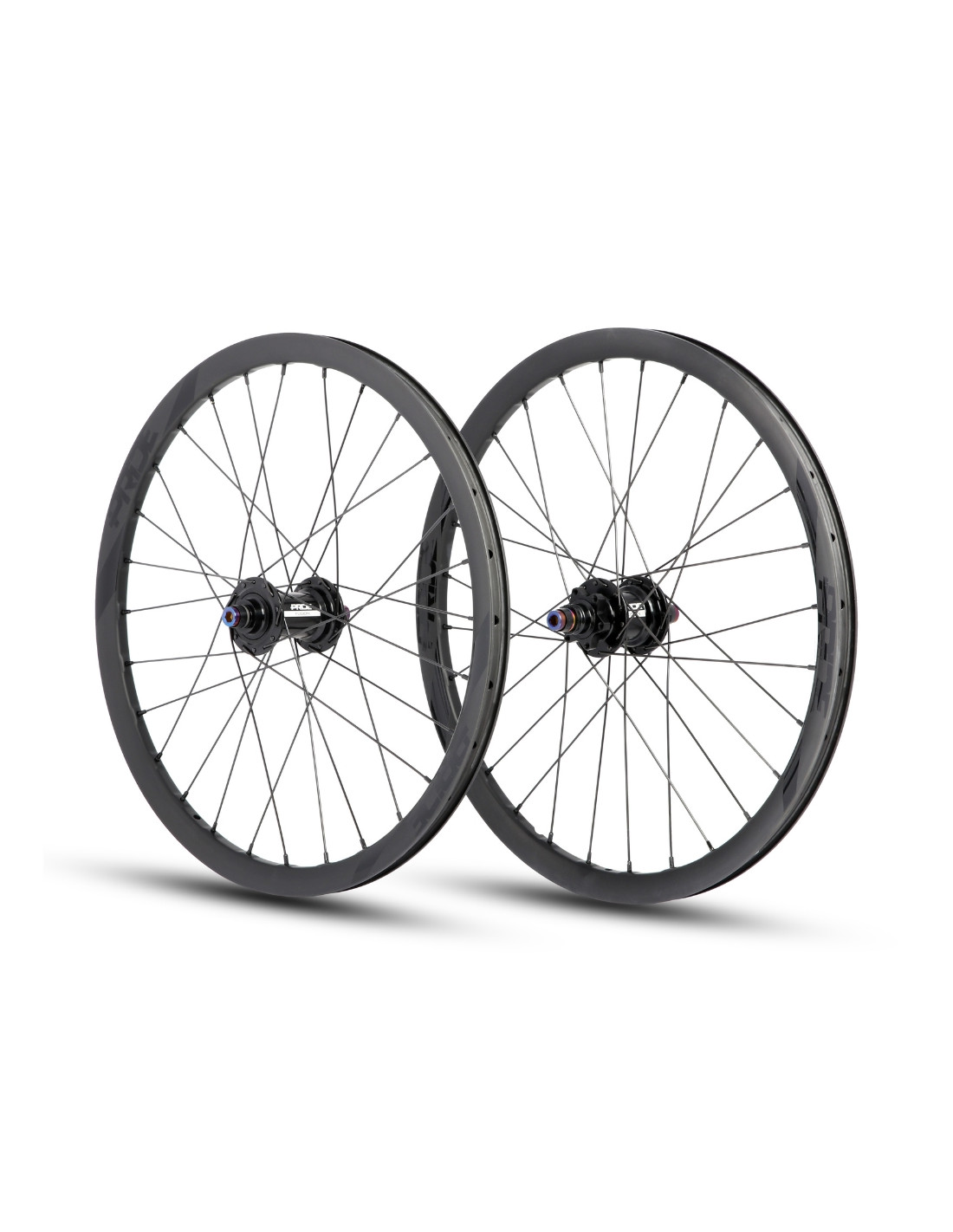

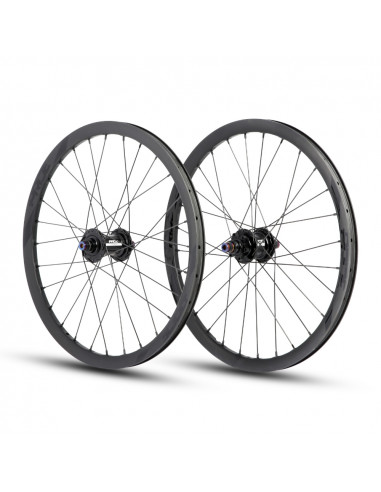

This pair of Pride Racing wheels combines Wave CFR rims with Matrix hubs, both designed and developed exclusively for BMX Racing.

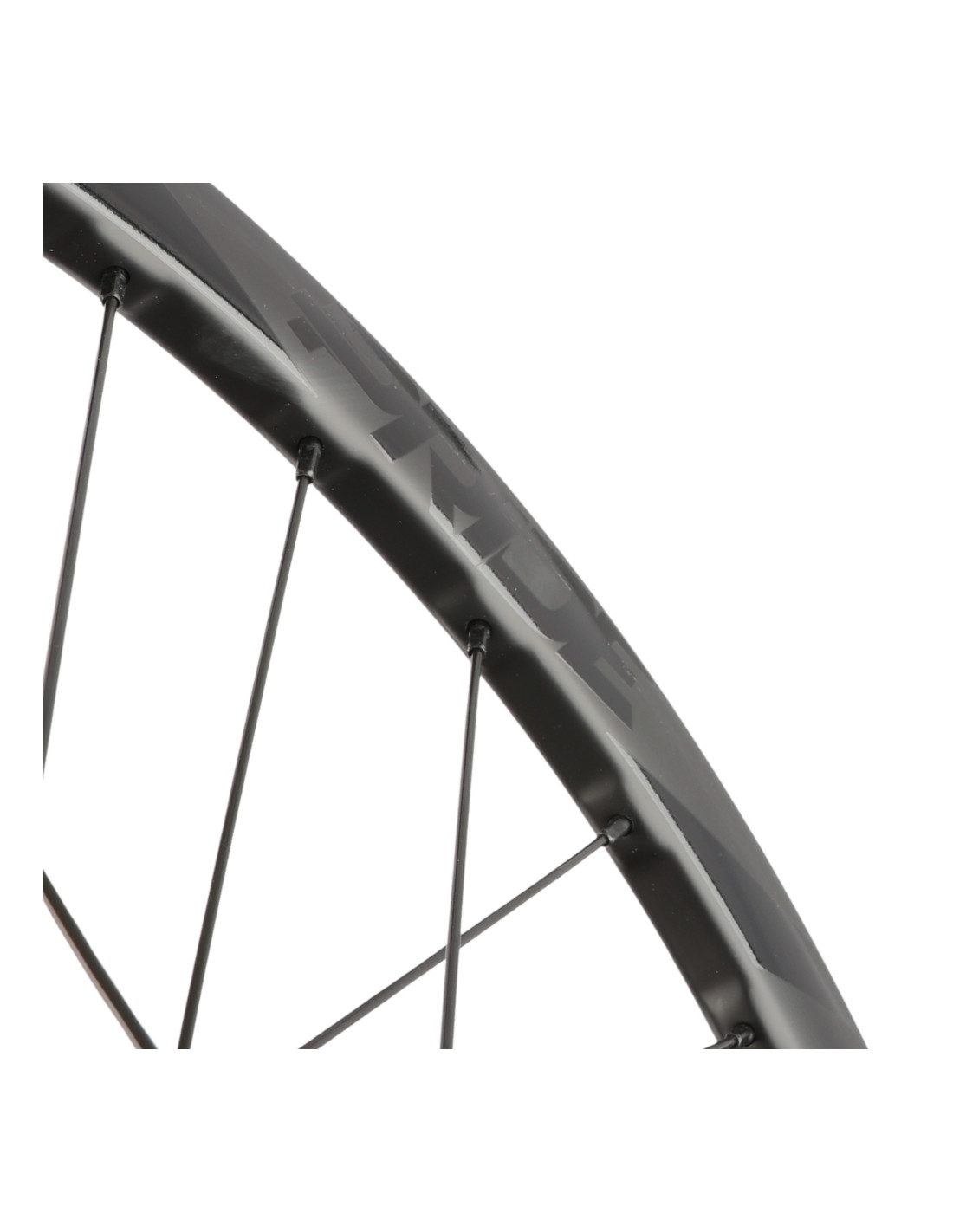

The Wave rims feature an exclusive design with a square reinforcement at each spoke nipple, allowing higher spoke tension for greater wheel stiffness. Made from Toray T700 carbon, they have a very low profile to reduce wind resistance and optimize rigidity.

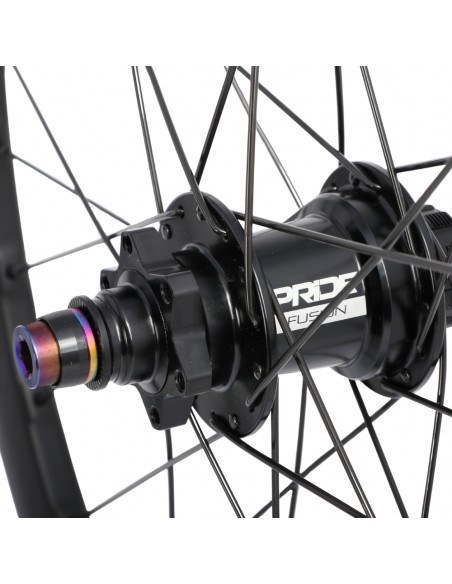

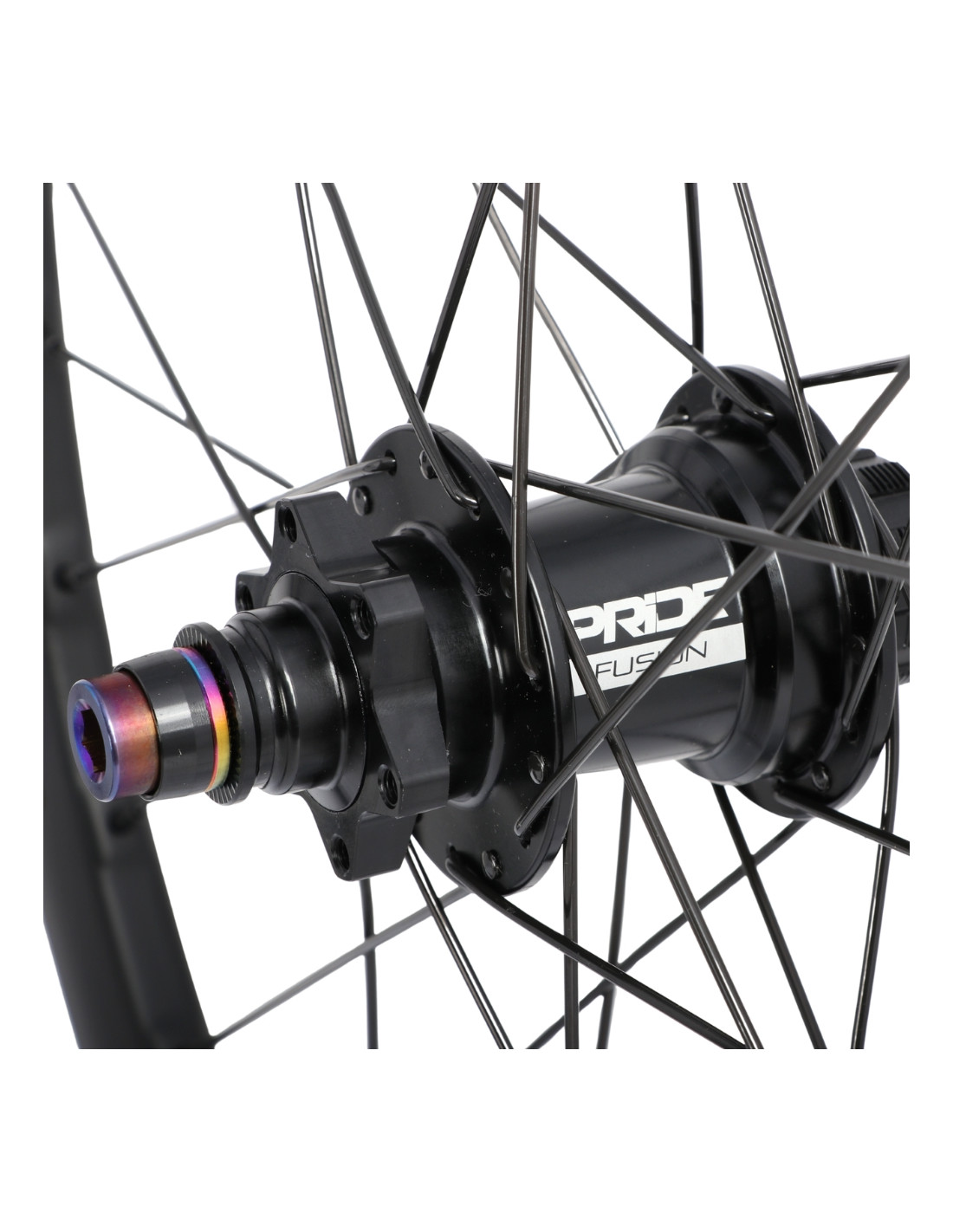

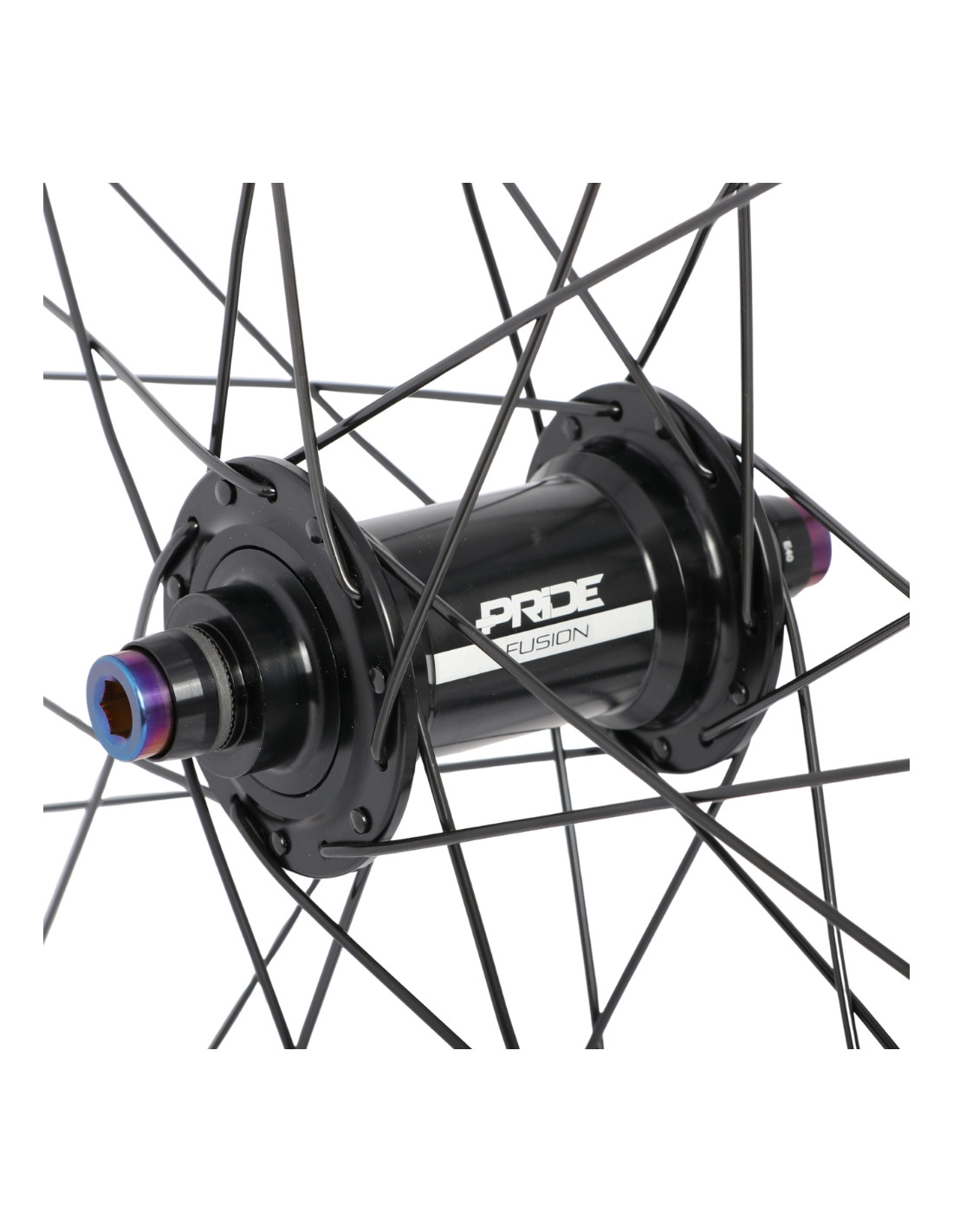

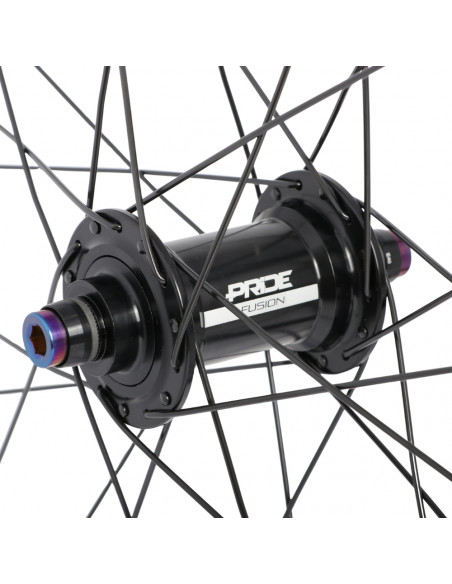

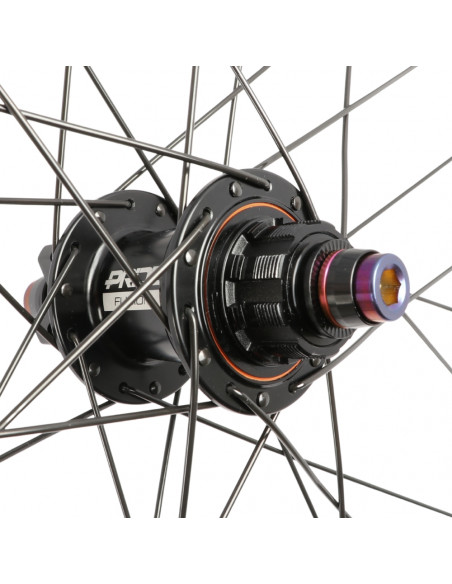

The Matrix hubs are equipped with a 12-pawl engagement system offering 216 points of engagement, combined with a CNC-machined 6061-T6 aluminum body.

NOTES
The rear wheel comes with a lockring and spacers to adjust the chain line.

SPECIFICATIONS – RIMS

• Material : Carbon
• Size / ETRTO : 20" / 16-451
• Hole count : 28
• Height : 25mm
• Width : 23mm
• V-Brake compatible : No
• Valve type : Presta
• Tire compatibility : 20x1-1/8" - 20x1-3/8"

SPECIFICATIONS – HUBS

• Material : Aluminum
• Front axle spacing : 10x100 mm
• Rear axle spacing : 10x110 mm
• Hole count : 28
• Driver standard : Shimano
• Engagement system : 180 points / 6 pawls
• Disc mount : ISO6
• Front bearings : 6805
• Rear bearings : 6804

WEIGHT

• Pair : 1490g
• Front wheel : 706g
• Rear wheel : 784g
