Wheels 24" (507) Pride Gravity Gloss V-Brake / Control V2 20-10mm Black

PRIDE GRAVITY / CONTROL WHEELS

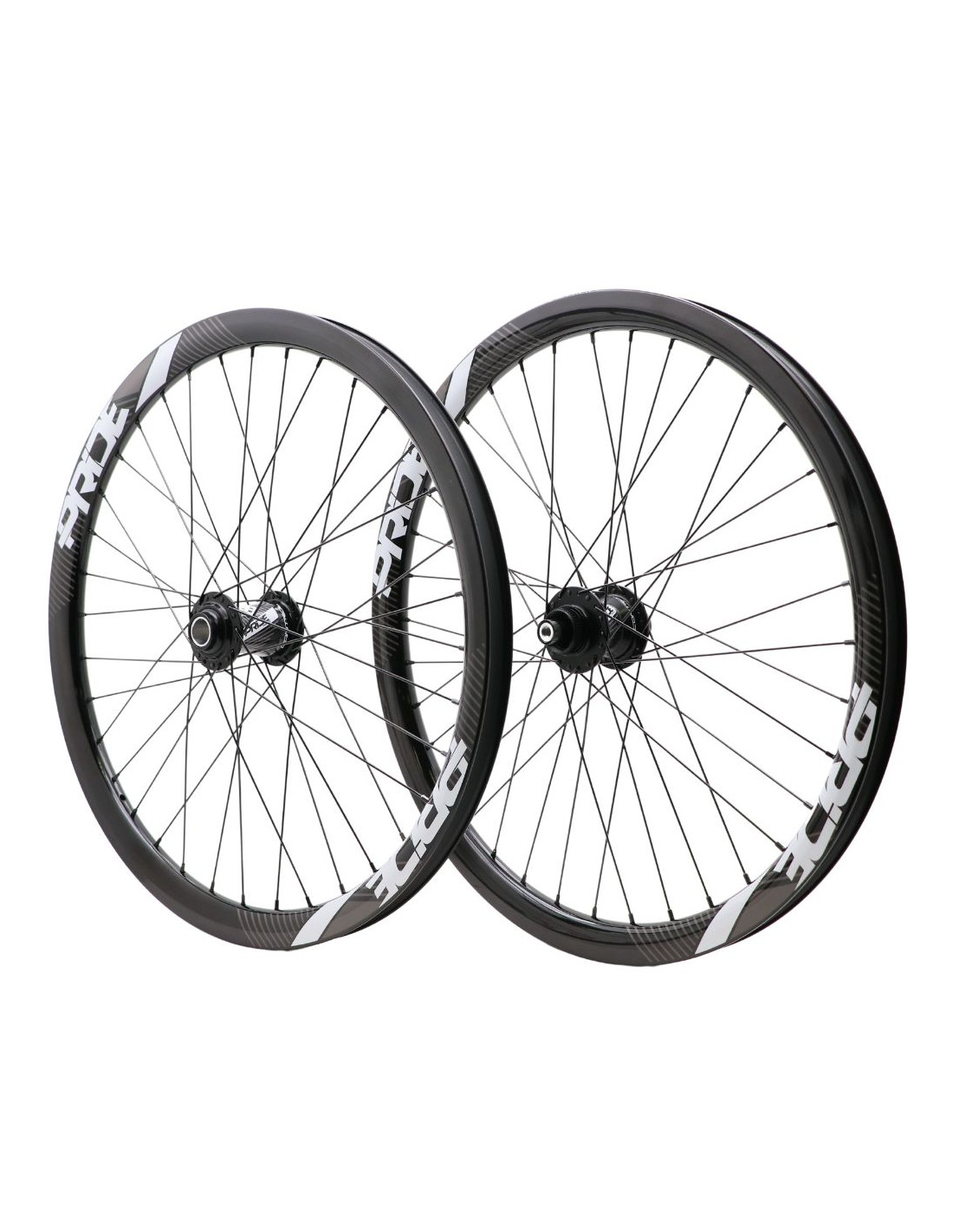

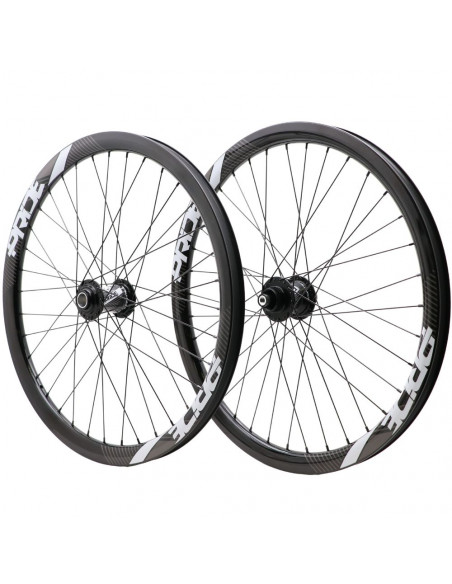

The Pride Racing Gravity wheels are designed for riders who demand top-tier equipment! Featuring Pride Gravity Carbon rims and Pride Control hubs with the 6/60 system providing 180 points of engagement, these wheels offer exceptional strength and high performance.

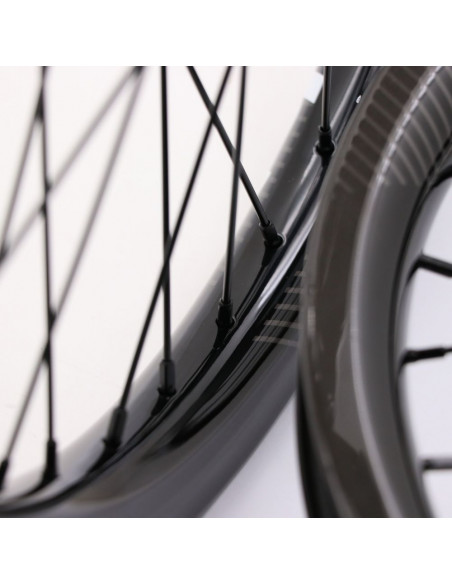

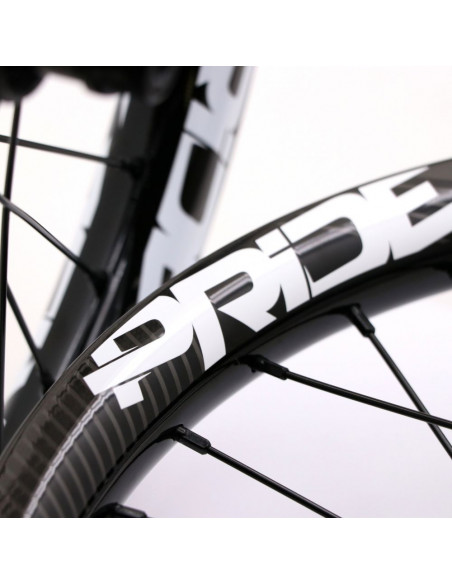

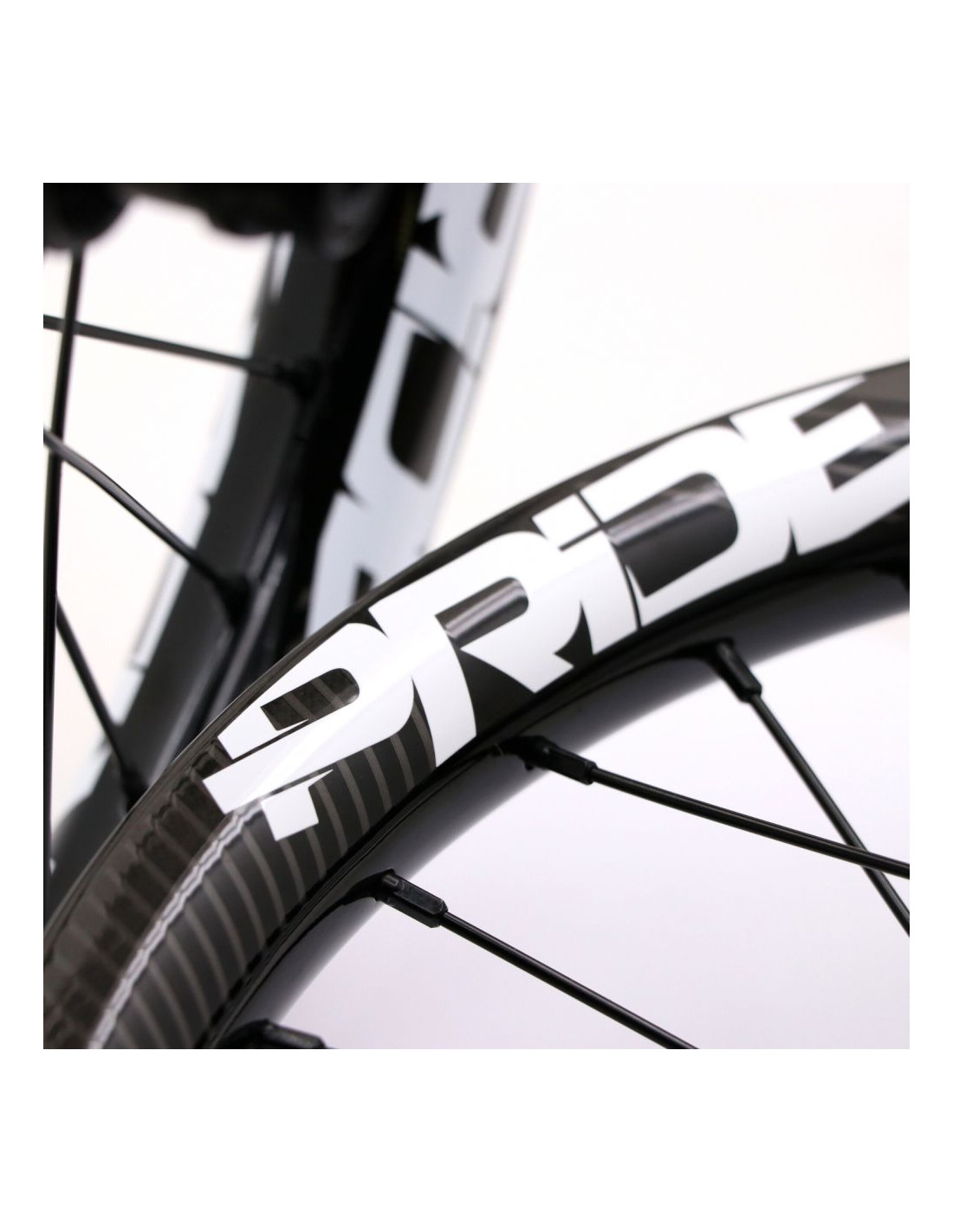

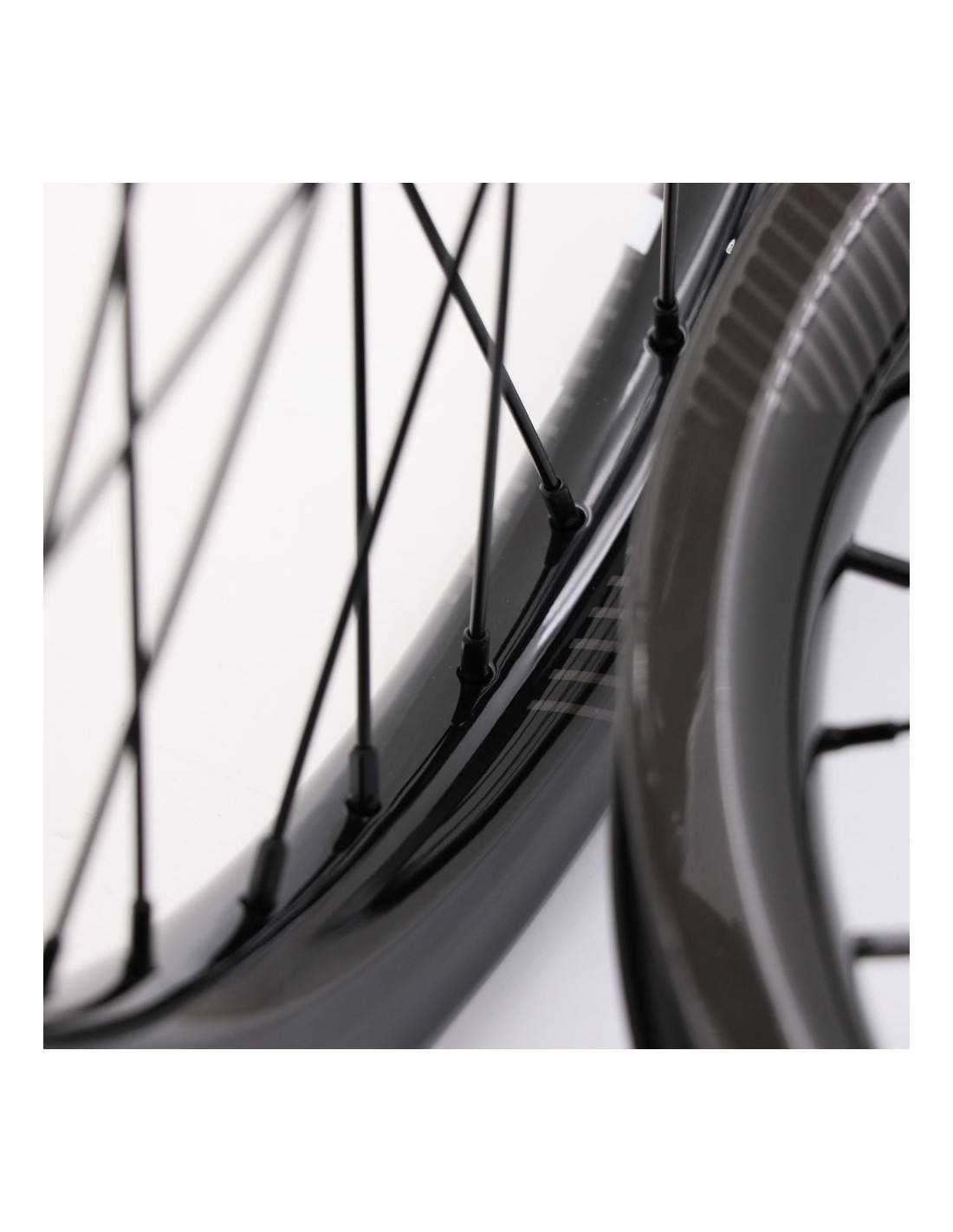

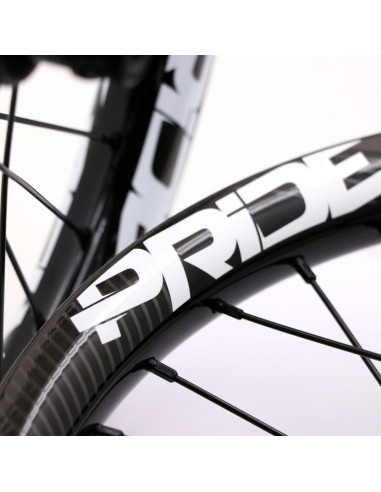

Developed exclusively for BMX Racing, the Pride Gravity rims meet the most extreme demands of the sport. The Gravity UD Matt rim is built with Today T700 carbon and features an ultra-low profile: 25mm height and 31.5mm width. These dimensions reduce wind resistance and optimize both vertical and lateral stiffness. The Gravity rim is Tubeless-compatible, requiring tubeless tape, a valve, and specific tubeless tires.

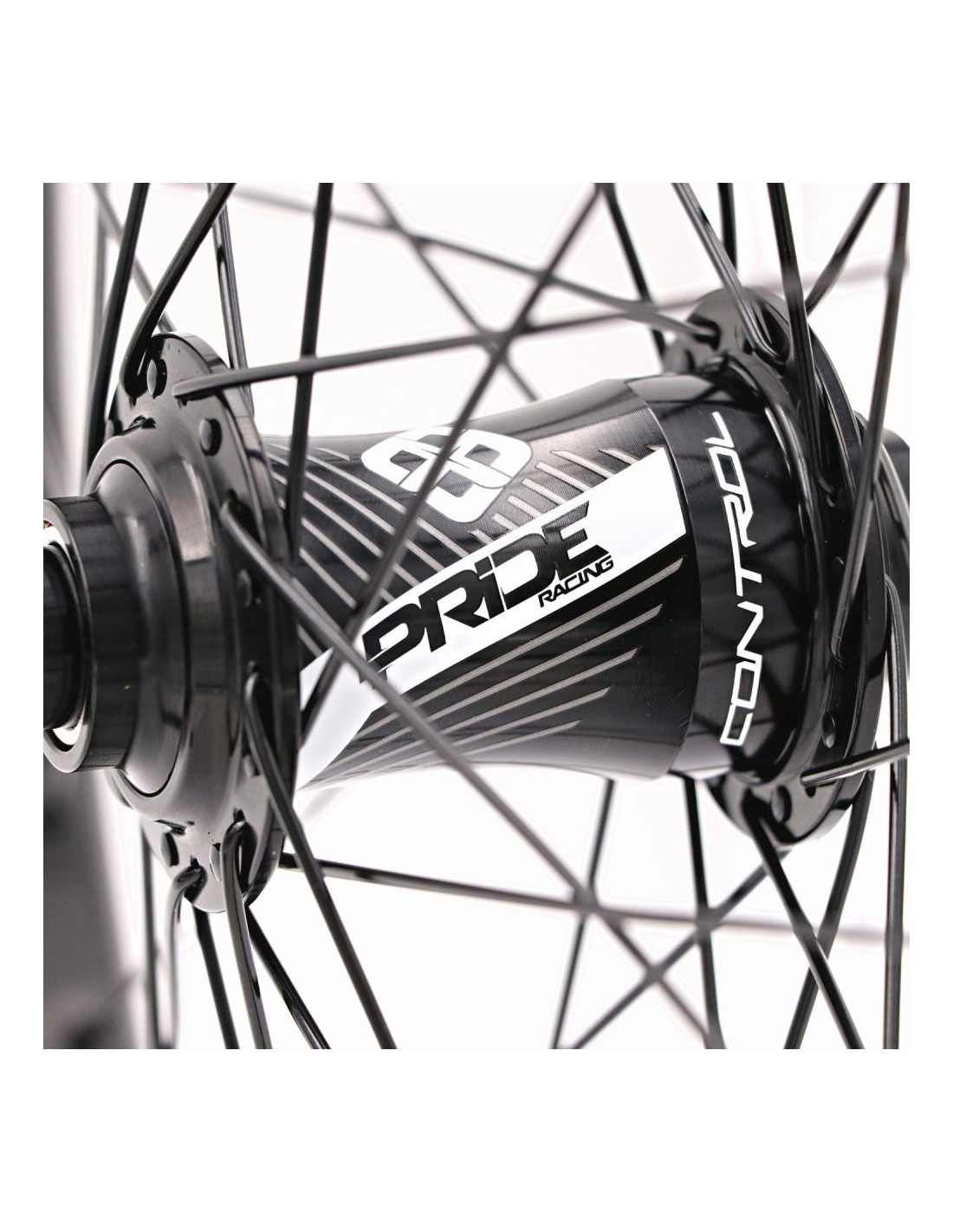

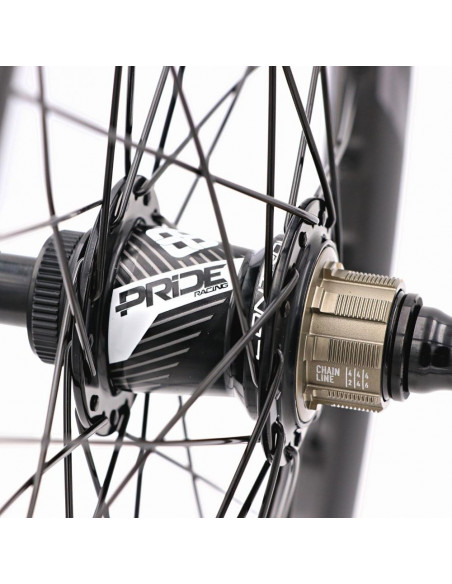

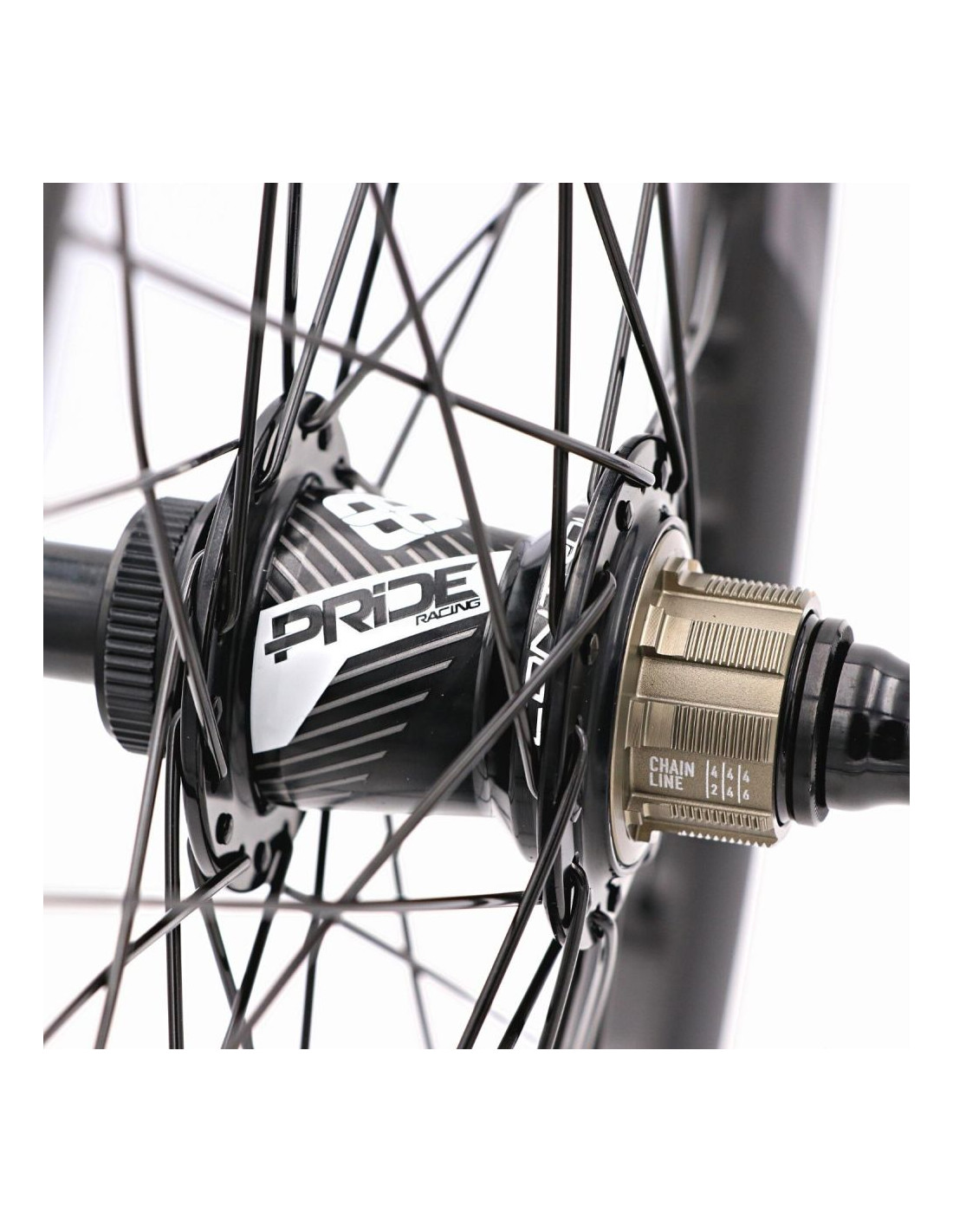

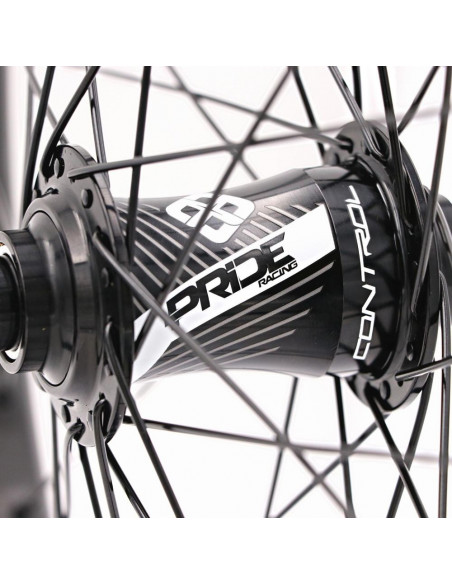

The Pride Racing Control V2 hubs include ISO6 disc mounts, making installation easier and ensuring wider compatibility. The hub shells are CNC-machined from 6061-T6 aluminum, providing high precision and excellent finish quality. The engagement system has been improved with a 7075-T6 aluminum driver, fitted with a clip holding six micro-toothed pawls that are slightly wider than previous versions. The system maintains its 180 points of engagement, with pawls engaging in groups of three, ensuring outstanding responsiveness during races.

This wheelset combines lightweight construction, stiffness, and performance, making it an essential choice for BMX Race riders seeking speed and reliability.

NOTES

• The 20mm front axle is not included.
• The rear wheel includes a lock ring and spacers to adjust the chainline.

SPECIFICATIONS – RIMS

• Size / ETRTO: 20" / 24-507
• Material: Carbon
• Height: 30mm
• Width: 30mm
• V-Brake Compatibility : Yes
• Valve compatibility: Presta
• Tire compatibility: 24x1.50" – 24x1.75"

SPECIFICATIONS – HUBS

• Material: 6061-T6 Aluminum
• Front spacing: 100x20mm (Thru-axle)
• Rear spacing: 100x10mm (Female bolts)
• Driver standard: Shimano
• Engagement type: 180 points
• Disc mount: ISO6
• Front hub bearings: 6805
• Rear hub bearings: 6902
