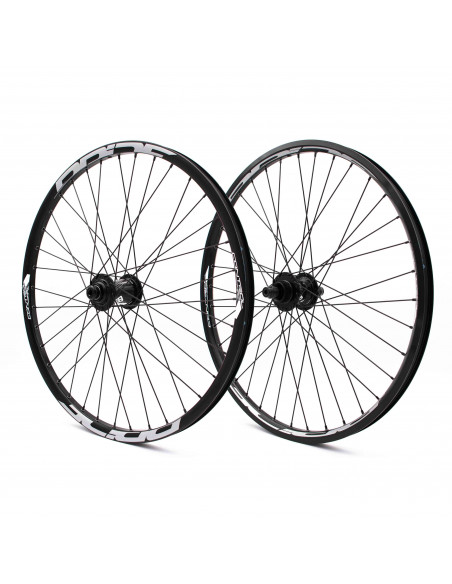

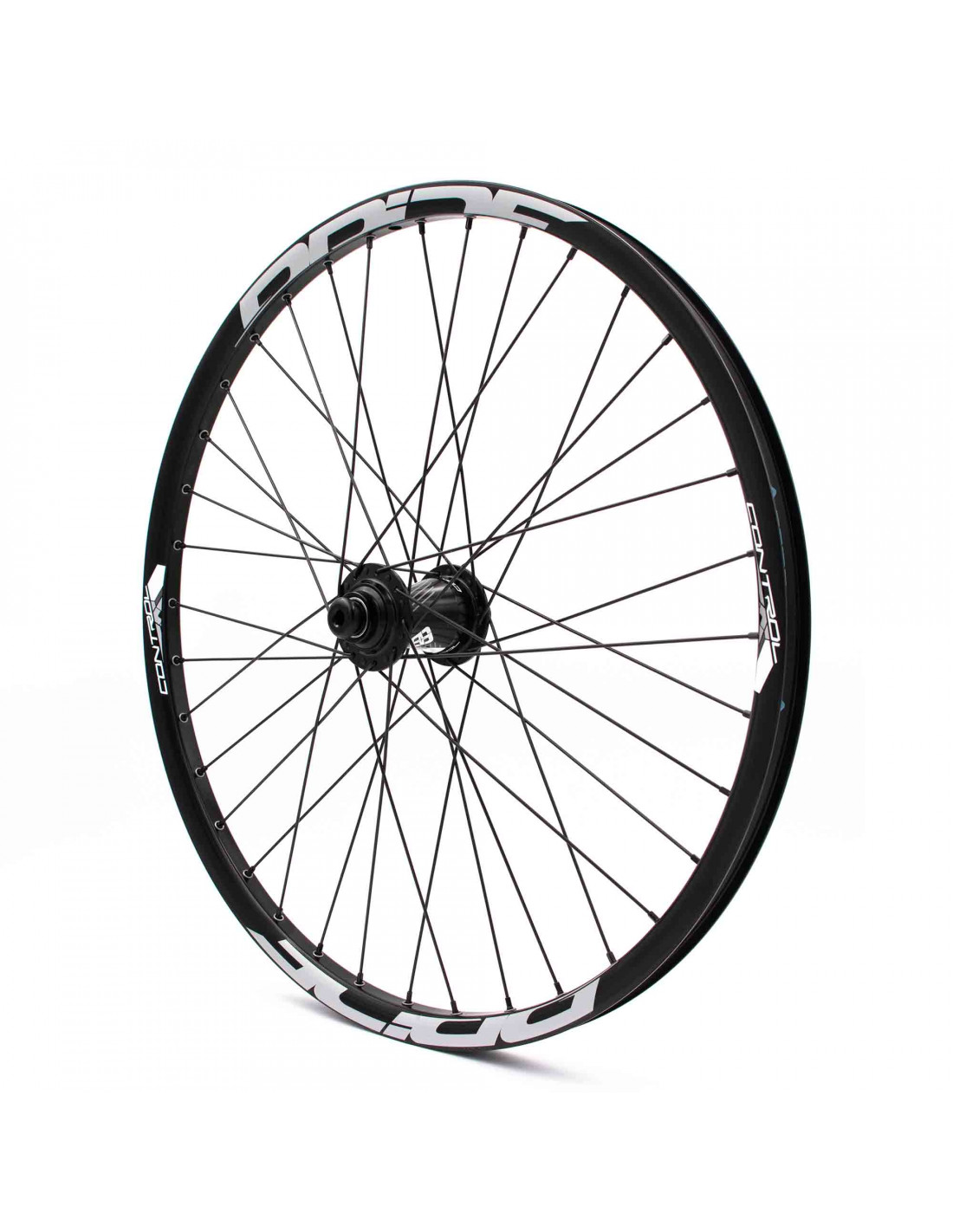

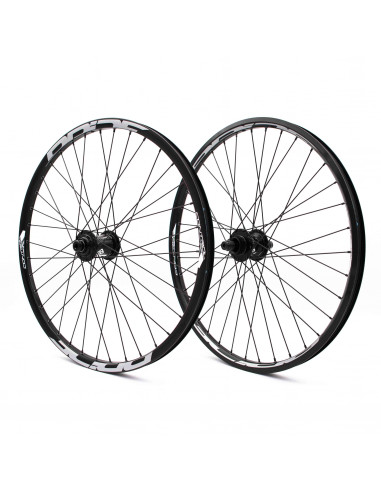

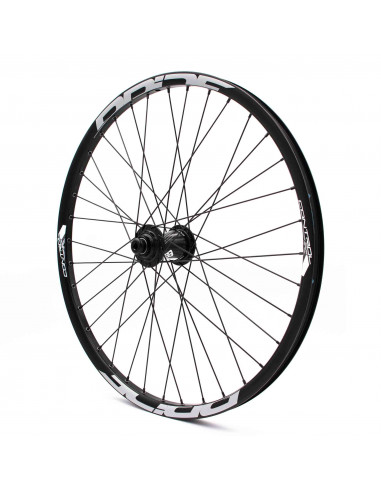

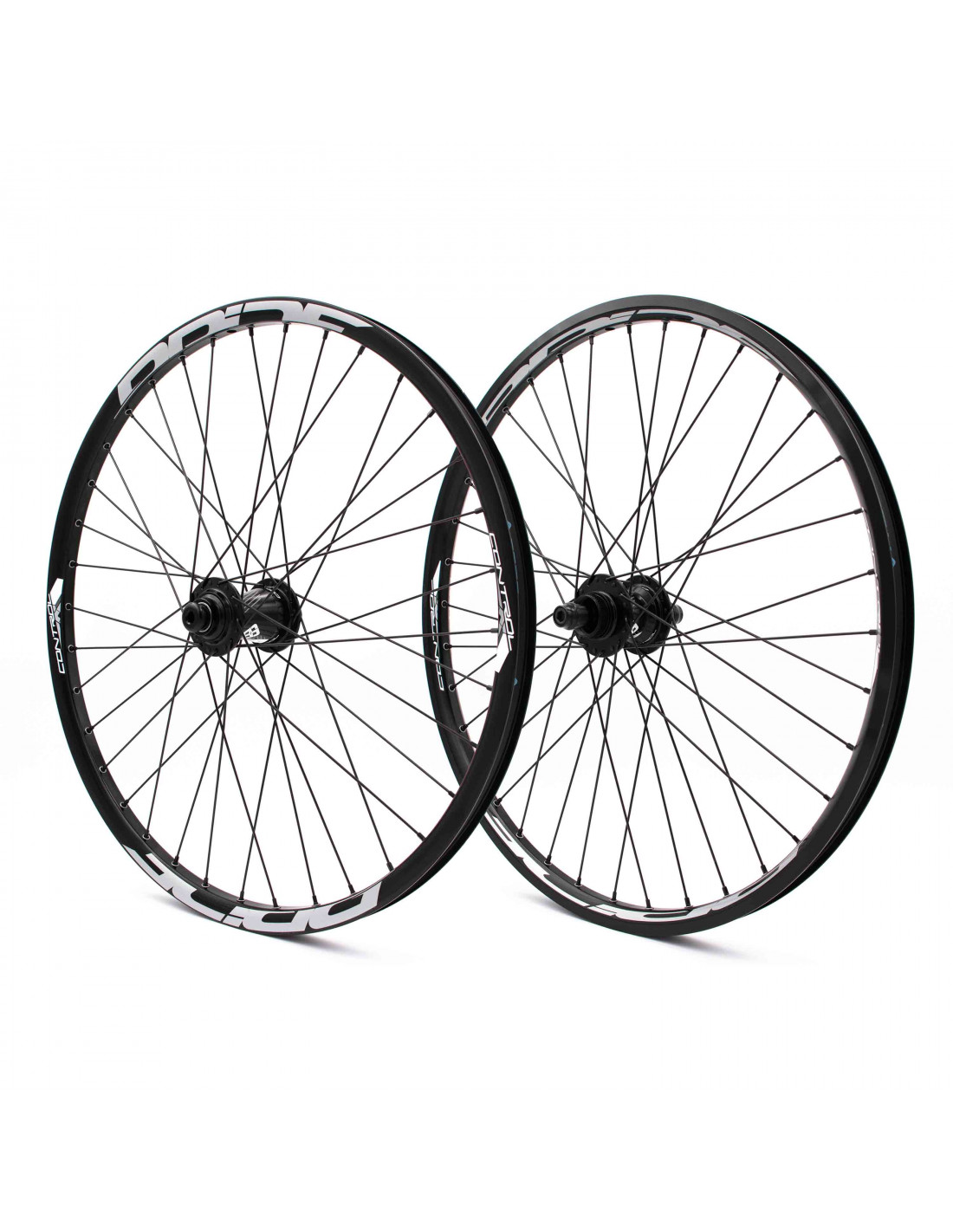

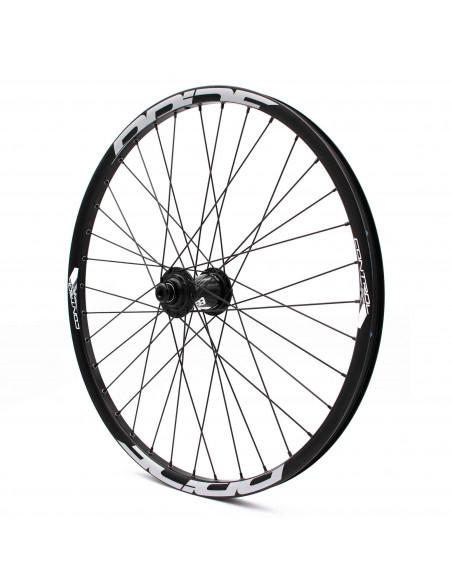

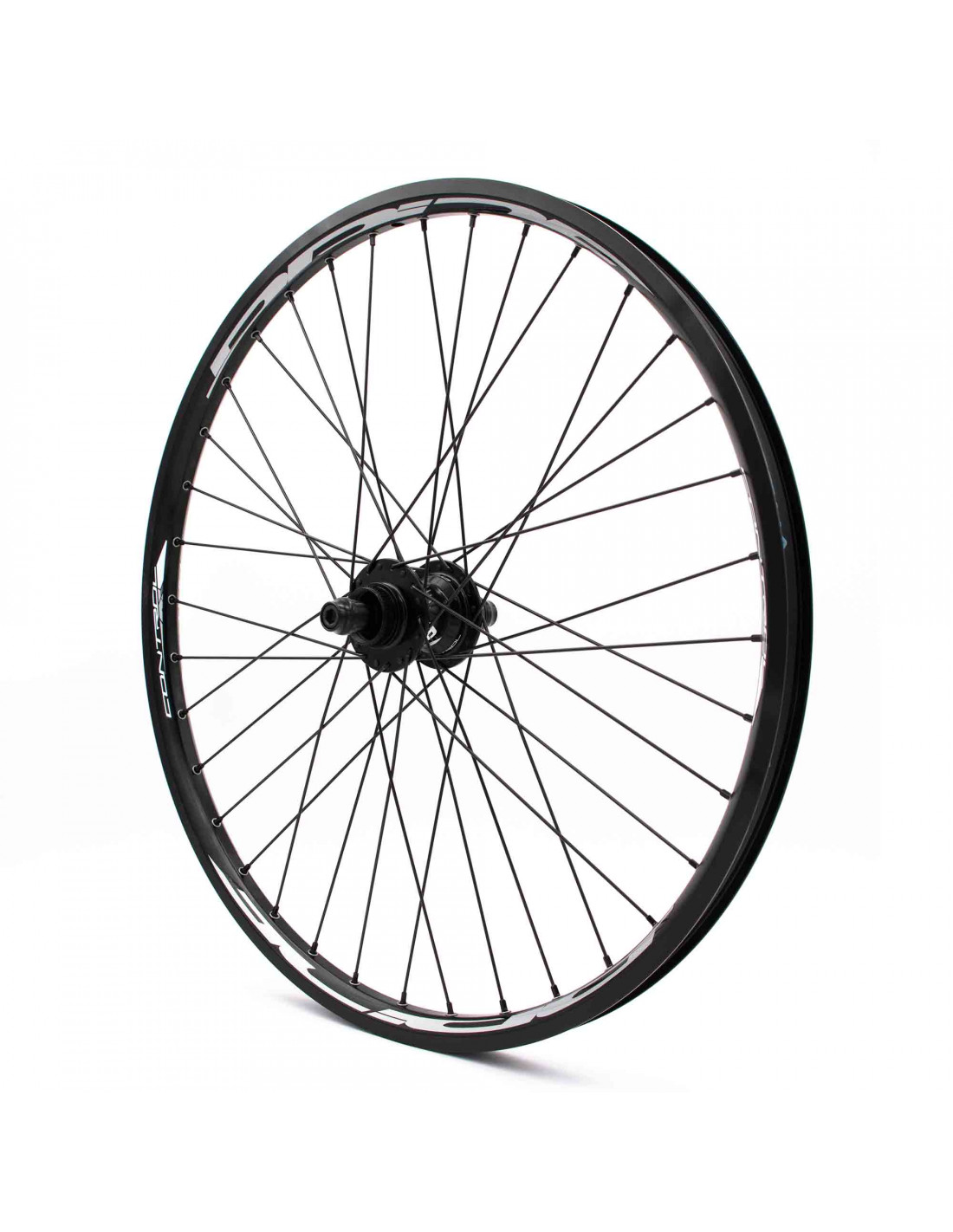

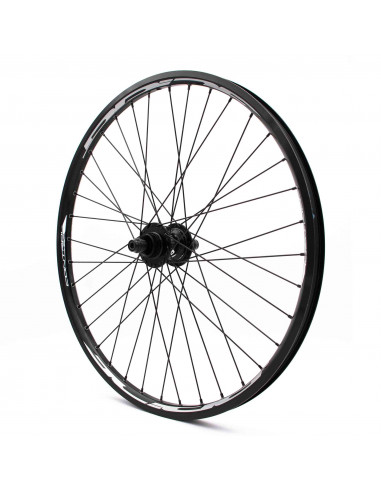

Wheels 24" (507) Pride Control V2 V-Brake - Black

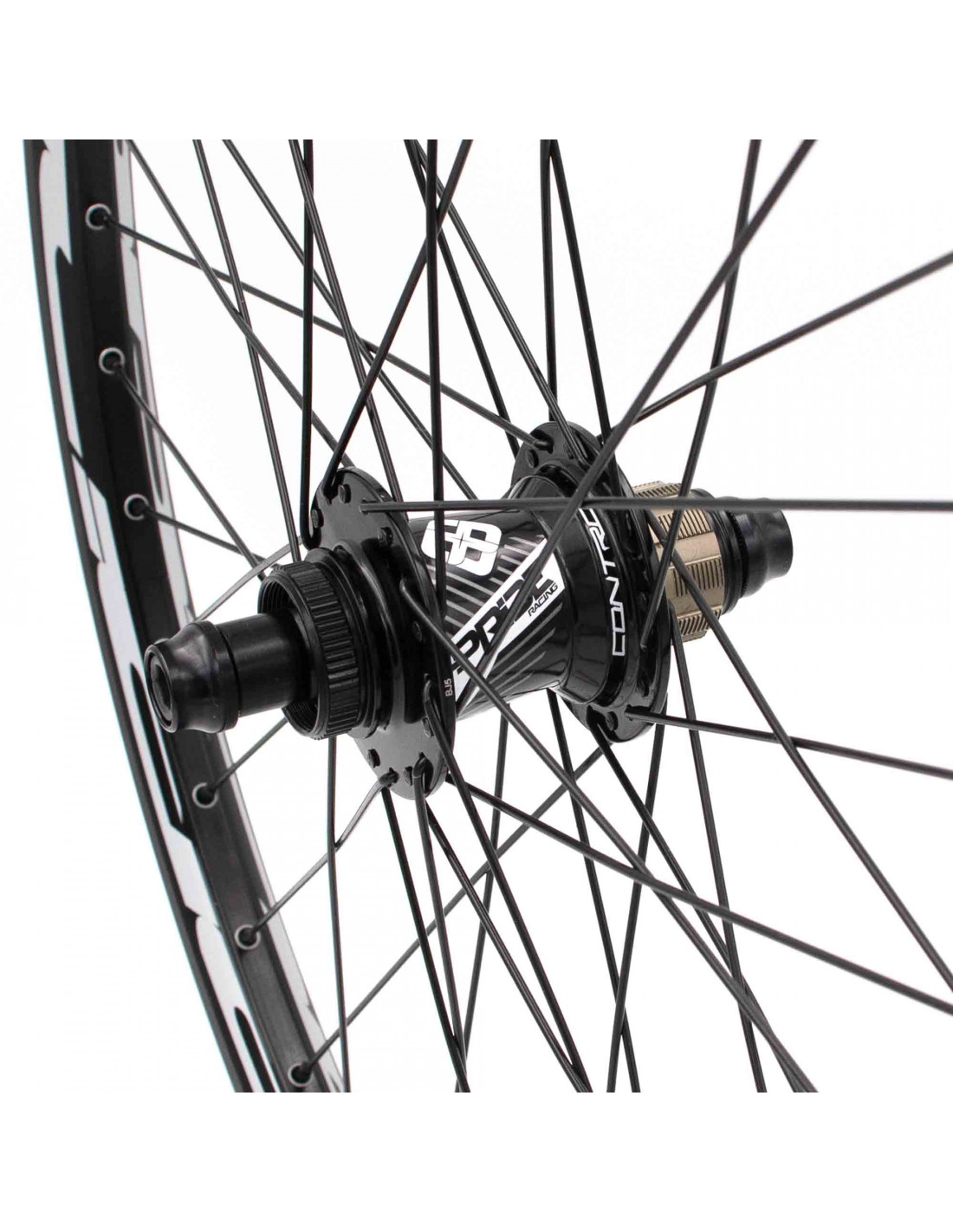

*Non-contractual photos (Pride Control V2 hubs)

PRIDE CONTROL WHEELS

Pride Racing wheels are made from 6061-T6 aluminum and are specifically designed for BMX Race bikes equipped with 24" (507) wheels. These wheels combine Pride Racing components, including Control rims and hubs. Thanks to their T6 heat treatment, these rims offer excellent performance with a balance of lightness and efficiency. The Control hubs complement this wheelset, featuring 6 micro-toothed pawls that provide 180 points of engagement. This setup ensures near-instant acceleration, whether coming out of a corner or at the start of a race, giving you a strong chance to finish ahead with this Pride Racing Control wheelset.

NOTES

• The 20mm front axle is not included.

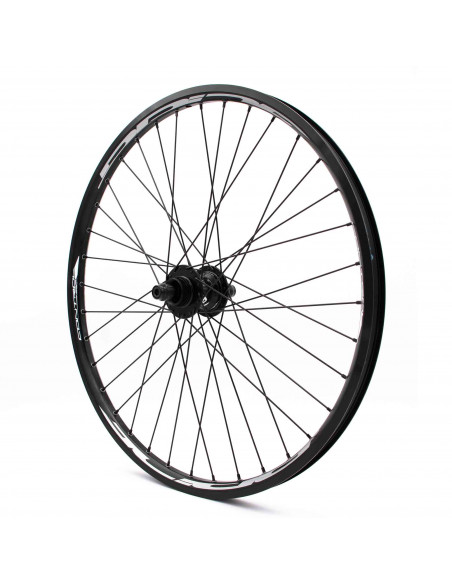

• The rear wheel comes with a lock ring and spacers to adjust the chainline.
• Rim tapes are not included.

SPECIFICATIONS - RIMS

• Size / ETRTO : 24" / 23-507 (Front) 24-507 (Rear)
• Material : 6061-T6 Aluminum
• Walls : Double
• Number of spokes : 36
• Height : 19mm
• Width : 27mm (Front) / 28mm (Rear)
• V-Brake compatibility : Yes
• Valve type : Schrader
• Compatible tire width : 28-65mm (24x1.50" - 24x1.75")

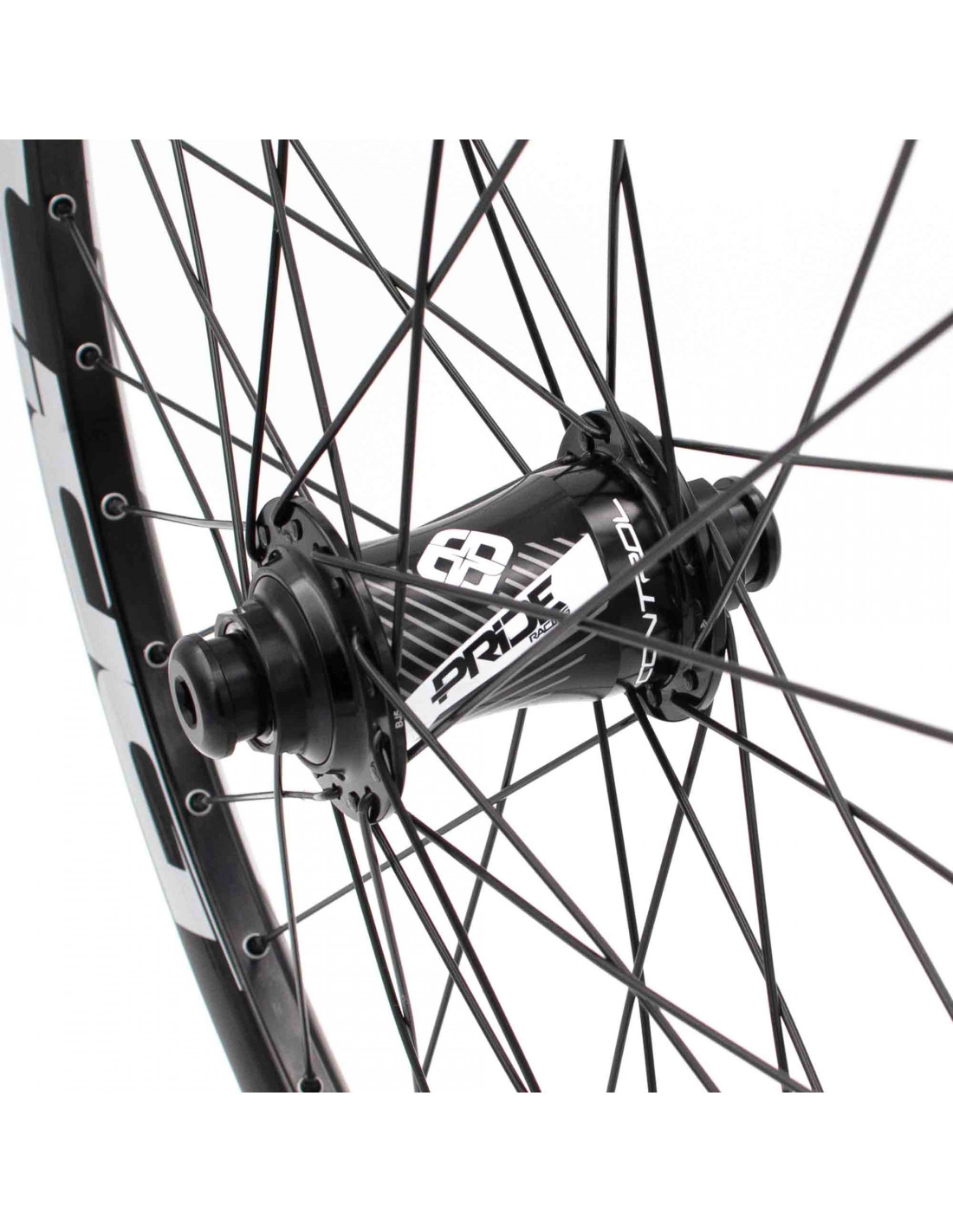

SPECIFICATIONS - HUBS

• Material : 6061-T6 Aluminum
• Front hub spacing : 20x100mm (axle not included)
• Rear hub spacing : 10x110mm (female bolts)
• Driver standard : Shimano
• Engagement type : 180 points / 6 pawls
• Disc mount : ISO6
• Front bearing : 6805
• Rear bearing : 6902
