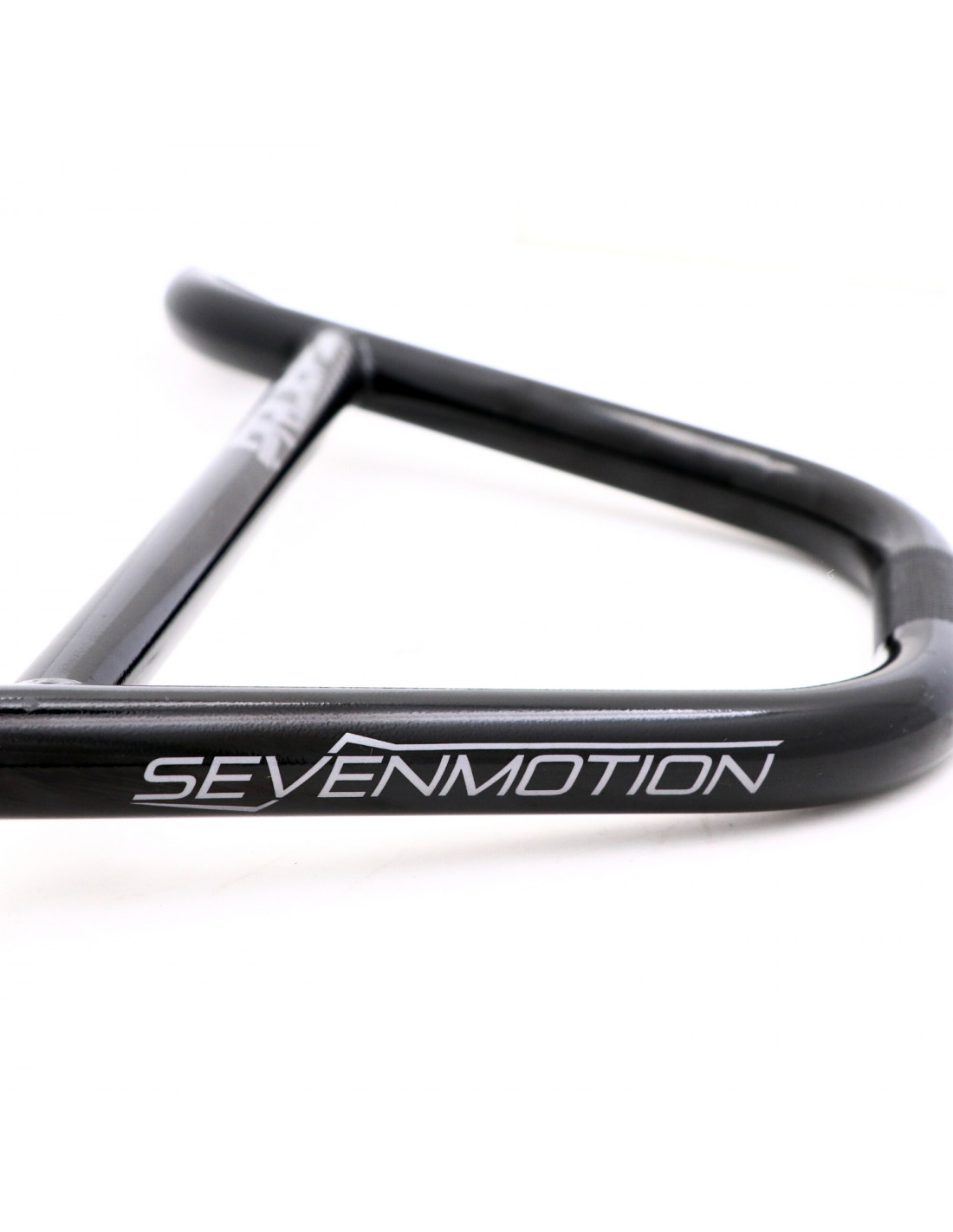

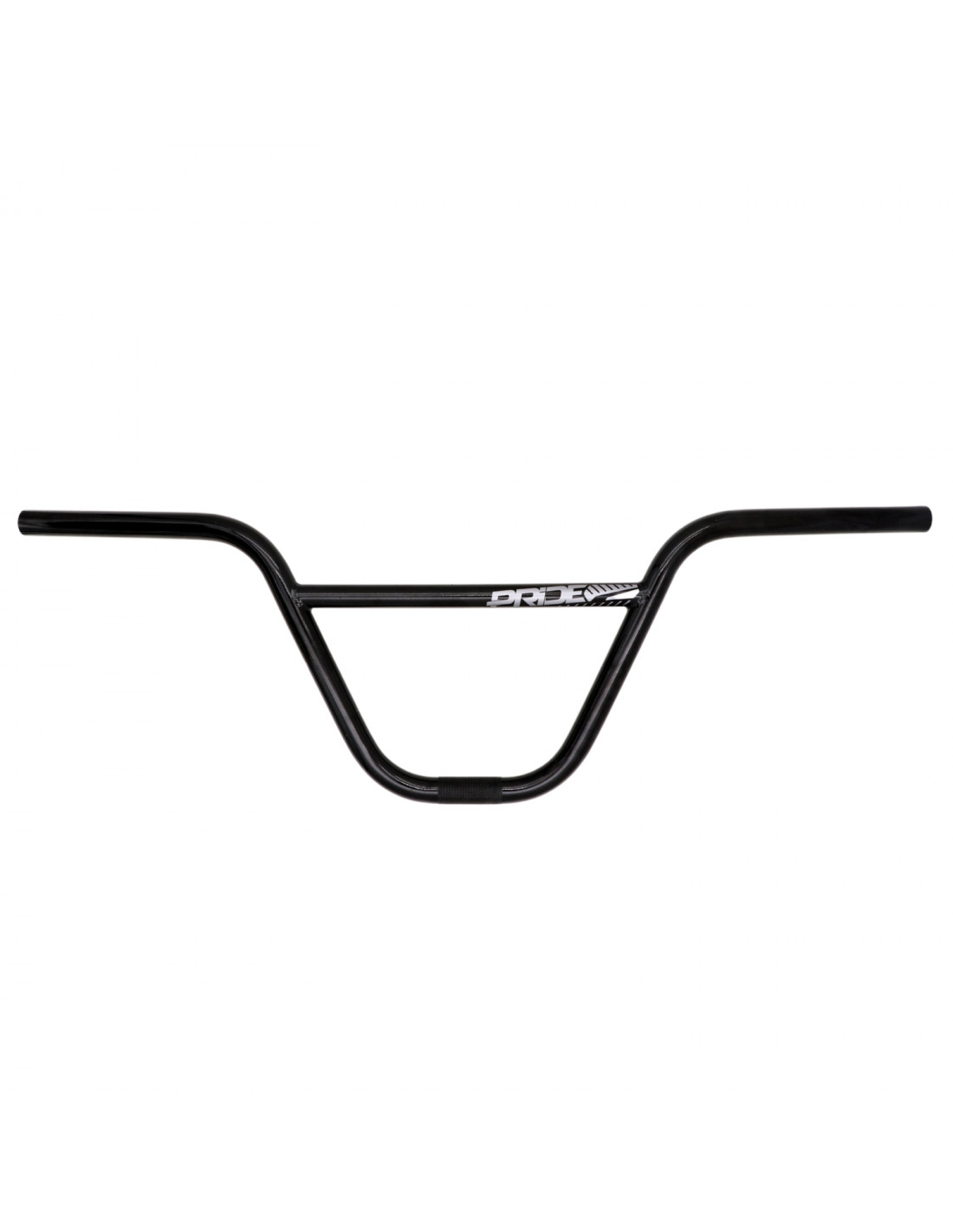

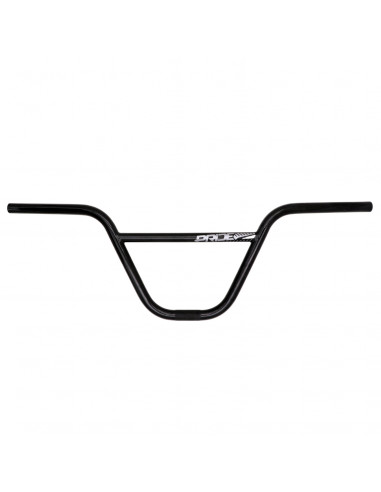

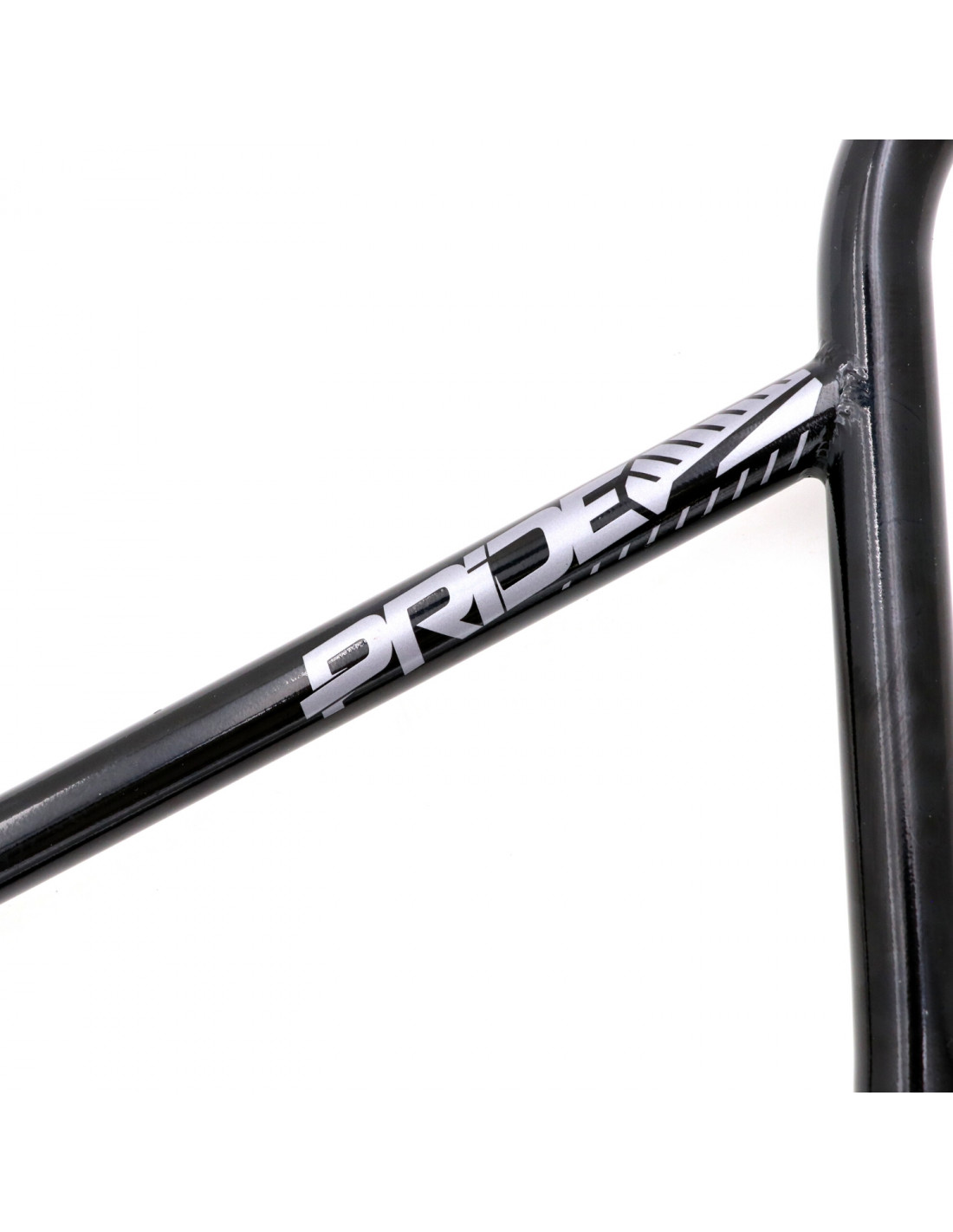

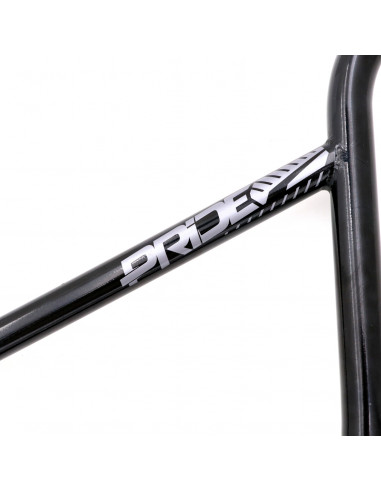

SEVENMOTION V2 PRIDE RACING HANDLEBAR
This handlebar was designed for BMX Race use. The geometry and design offers the best possible position on your bike when you are at the start of a race, or at full speed on the track. A 7 degrees Backsweep allows for a compromised position between aggressiveness and comfort. Its 1.5 degrees Upsweep allows for a good positioning of the elbows and shoulders.
A variable thickness Chromoly 4130 seam construction, 13 butted to be exact, a heat treated material for increased rigidity and reliability throughout your BMX Race experience.
| SEVENMOTION V2 | [A] - RISE | [B] - WIDTH | [C] - BACKSWEEP | [D] - UPSWEEP | CLAMP DIAMETER | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCHES | MM | INCHES | DEGREES | DEGREES | MM | GRAMS | |
| 7.00’’ | 177.8 | 7 | 695 | 27.36 | 7° | 1.5° | Ø22.2 | 716 |
| 7.50’’ | 190.5 | 7.5 | 715 | 28.15 | 726 | |||
| 8.00" | 203.2 | 8 | 735 | 28.93 | 802 | |||
| 8.25" | 209.55 | 8.25 | 735 | 28.93 | 824 | |||
| 8.50’’ | 215.9 | 8.5 | 735 | 28.93 | 829 | |||
